QD112-8M-20, Timing Pulley

QD112-8M-20 - Cast Iron Powerhouse®HTD® Pulleys

QD112-8M-20

QD112-8M-20 - Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

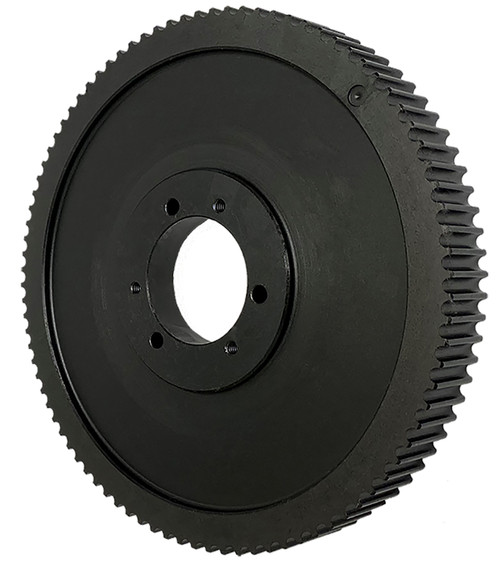

QD112-8M-20, Timing Pulley, Cast Iron, Black Oxide

Learn more about QD112-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD112-8M-20
Teeth 112
Tooth Style HTD8mm
For Belt Width (mm) 20.00
Type C-3
Material Cast Iron
Finish Black Oxide
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.177
Face Width (in) 1.125
Overall Length (in) 1.125
Min. Bore (in) 0.5
Unit System Metric
Bushing SK
P.D. (mm) 285.00
O.D. (mm) 283.90
MOQ 1
Weight (lb) 13.51
Part Number Cross Reference 8M112QD20.SK, P112-8M-20, QD112-8M-20, QD112-8M-20
