QD18L050, Timing Pulley

QD18L050 - Steel Imperial Pitch Pulleys

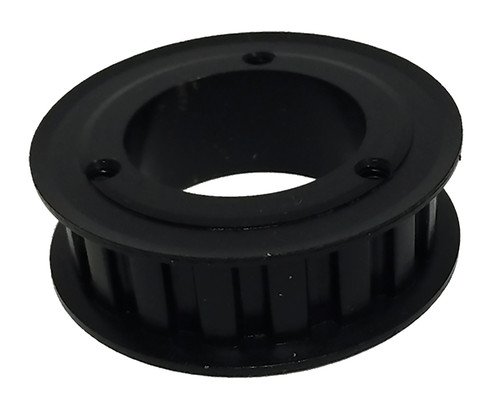

QD18L050

Click to Enlarge

QD18L050, Timing Pulley, Steel, Black Oxide,

Learn more about QD18L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD18L050
Teeth 18
Tooth Style L
For Belt Width (in) 0.5000
Type E1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.149
Outside Diameter (in) 2.119
Flange Diameter (in) 2.375
Face Width (in) 0.750
Overall Length (in) 0.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing JA
P.D. (mm) 55.00
O.D. (mm) 53.80
MOQ 1
Weight (lb) 0.44
Part Number Cross Reference 18L050JA, 18L050.JA, 18L050JA, 18L050-JA, 20181917, 18L050, 18L050QD, 18L050-JA, P18L050 JA, Q18L050, QD18L050
