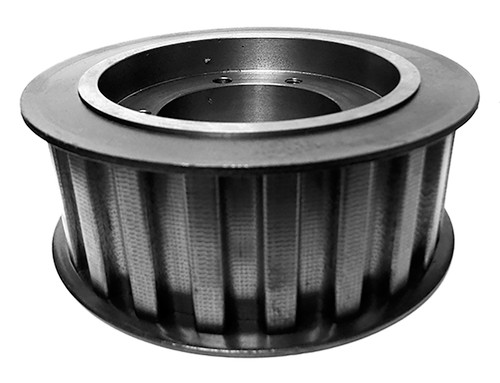

QD18XH200, Timing Pulley

QD18XH200 - Cast Iron Imperial Pitch Pulleys

QD18XH200

Click to Enlarge

QD18XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD18XH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD18XH200
Teeth 18
Tooth Style XH
For Belt Width (in) 2.0000
Type E1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.903
Flange Diameter (in) 5.563
Face Width (in) 2.563
Overall Length (in) 3.594
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
P.D. (mm) 127.00
O.D. (mm) 124.50
MOQ 1
Weight (lb) 7.67
Part Number Cross Reference 18H200SH, 18XH200SK, 18XH200-SK, 20181920, 18XH200, 18XH200QD, 18XH200-SK, P18XH200 SK, Q18XH200, QD18XH200
