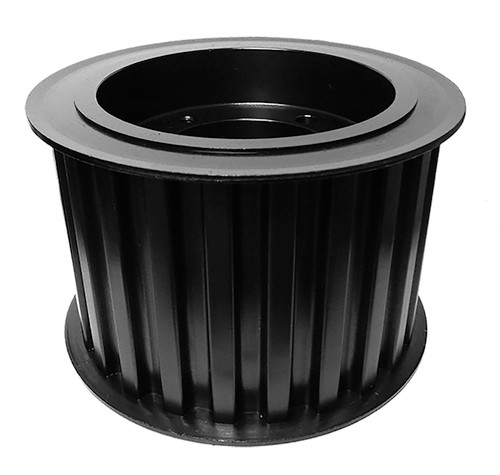

QD20XH400, Timing Pulley

QD20XH400 - Cast Iron Imperial Pitch Pulleys

QD20XH400

Click to Enlarge

QD20XH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD20XH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD20XH400
Teeth 20
Tooth Style XH
For Belt Width (in) 4.0000
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.570
Outside Diameter (in) 5.460
Flange Diameter (in) 6.125
Face Width (in) 4.688
Overall Length (in) 4.969
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
P.D. (mm) 142.00
O.D. (mm) 138.70
MOQ 1
Weight (lb) 12.95
Part Number Cross Reference 20XH400SK, 20XH400SK, 20XH400-SK, 20181949, 20XH400, 20XH400QD, 20XH400-SK, P20XH400, Q20XH400, QD20XH400
