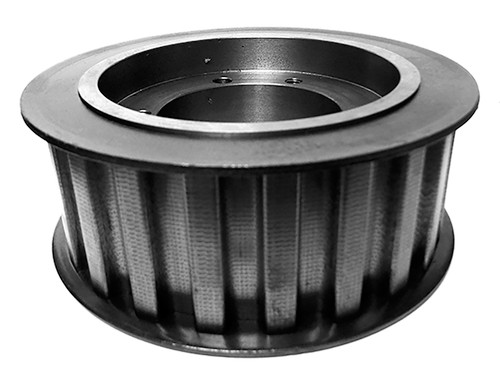

QD23XH200, Timing Pulley

QD23XH200

Click to Enlarge

QD23XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD23XH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD23XH200
Teeth	23
Tooth Style	XH
For Belt Width (in)	2.0000
Type	D1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	6.406
Outside Diameter (in)	6.296
Flange Diameter (in)	6.813
Face Width (in)	2.563
Overall Length (in)	2.781
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
P.D. (mm)	163.00
O.D. (mm)	159.90
MOQ	1
Weight (lb)	11.28
Part Number Cross Reference	23XH200SK, 23XH200SK, 23XH200, 23XH200QD, P23XH200 SK, 23XH200SK, QD23XH200, QD23XH200
