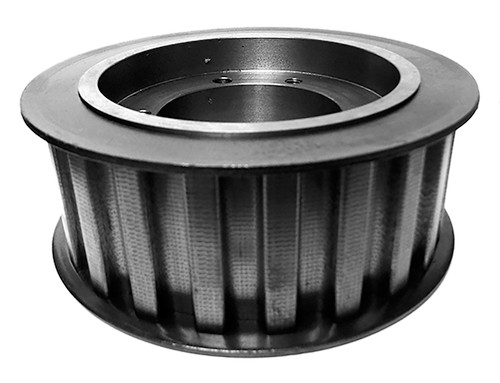

QD25XH200, Timing Pulley

QD25XH200

Click to Enlarge

QD25XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD25XH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD25XH200
Teeth	25
Tooth Style	XH
For Belt Width (in)	2.0000
Type	D1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	6.963
Outside Diameter (in)	6.853
Flange Diameter (in)	7.250
Face Width (in)	2.563
Overall Length (in)	2.781
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
P.D. (mm)	177.00
O.D. (mm)	174.10
MOQ	1
Weight (lb)	13.00
Part Number Cross Reference	25XH200SF, 25XH200SF, 25XH200, 25XH200QD, P25XH200 SF, 25XH200SF, QD25XH200, QD25XH200
