QD26XXH200, Timing Pulley

QD26XXH200 - Cast Iron Imperial Pitch Pulleys

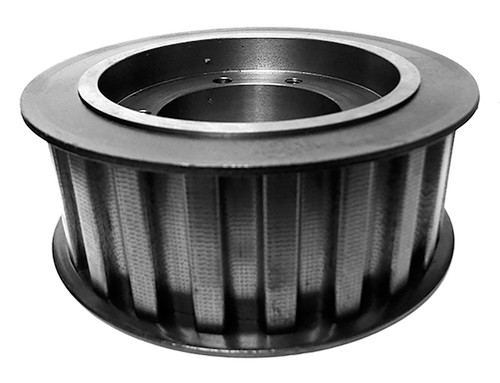

QD26XXH200

Click to Enlarge

QD26XXH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD26XXH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD26XXH200
Teeth 26
Tooth Style XXH
For Belt Width (in) 2.0000
Type D2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 10.345
Outside Diameter (in) 10.225
Flange Diameter (in) 11.063
Face Width (in) 2.563
Overall Length (in) 2.563
Min. Bore (in) 0.875
Unit System Inch
Bushing E
P.D. (mm) 263.00
O.D. (mm) 259.70
MOQ 1
Weight (lb) 32.00
Part Number Cross Reference 26XXH200E, 26XXH200E, 26XXH200-E, 20182007, 26XXH200, 26XXH300QD, 26XXH200-E, P26XXH200 E, 26XXH200E, Q26XXH200, QD26XXH200, QD26XXH200

Comparable to: 26XXH200E, 26XXH200E, 26XXH200-E, 20182007, 26XXH200, 26XXH300QD, 26XXH200-E, P26XXH200 E, 26XXH200E, Q26XXH200, QD26XXH200, QD26XXH200
