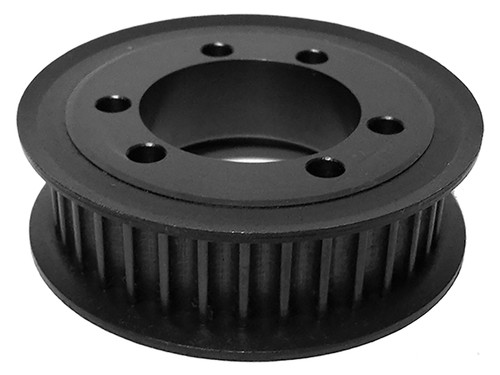

QD28-8M-20, Timing Pulley

QD28-8M-20 - Steel Powerhouse®HTD® Pulleys

QD28-8M-20

Click to Enlarge

QD28-8M-20, Timing Pulley, Steel, Black Oxide,

Learn more about QD28-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD28-8M-20
Teeth 28
Tooth Style HTD8mm
For Belt Width (mm) 20.00
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for H Bushing
Pitch Diameter (in) 2.807
Outside Diameter (in) 2.755
Flange Diameter (in) 3.150
Face Width (in) 1.125
Overall Length (in) 1.125
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.875
Unit System Metric
Bushing H
P.D. (mm) 71.00
O.D. (mm) 70.00
MOQ 1
Weight (lb) 0.93
Part Number Cross Reference P288M20-H, B288M20H, P28-8M-20-QT, 20182256, P28-8M-20-H HTD SPKT, P288M20, P28-8M-20-HQ, P28-8M-20-QT, P28-8M-20, P288M20H, 6497K711, 3PEC2, P28-8M-20-L, QD28-8M-20, 110703, QD28-8M-20

Comparable to: P288M20-H, B288M20H, P28-8M-20-QT, 20182256, P28-8M-20-H HTD SPKT, P288M20, P28-8M-20-HQ, P28-8M-20-QT, P28-8M-20, P288M20H, 6497K711, 3PEC2, P28-8M-20-L, QD28-8M-20, 110703, QD28-8M-20
