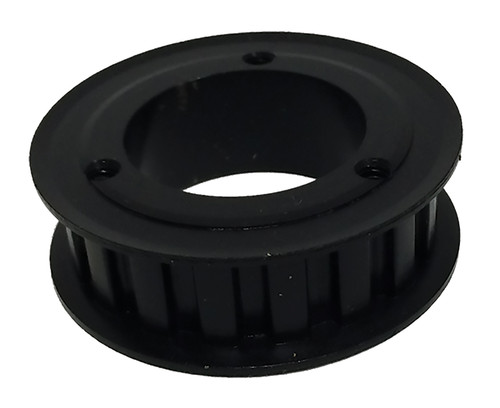

QD28L050, Timing Pulley

QD28L050 - Cast Iron Imperial Pitch Pulleys

QD28L050

Click to Enlarge

QD28L050, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD28L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD28L050
Teeth 28
Tooth Style L
For Belt Width (in) 0.5000
Type E1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.312
Flange Diameter (in) 3.566
Face Width (in) 0.750
Overall Length (in) 0.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing SH
P.D. (mm) 85.00
O.D. (mm) 84.10
MOQ 1
Weight (lb) 1.20
Part Number Cross Reference 28L050SH , 28L050.SH, 28L050SH, 28L050-SH, 20182016, 28L050, 28L050QD, 28L050-SH, P28L050 SH, Q28L050, QD28L050
