QD28XH400, Timing Pulley

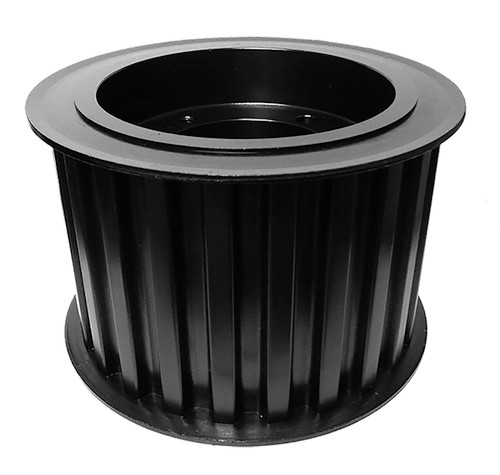

QD28XH400 - Cast Iron Imperial Pitch Pulleys

QD28XH400

QD28XH400 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

QD28XH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD28XH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD28XH400
Teeth 28
Tooth Style XH
For Belt Width (in) 4.0000
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 7.799
Outside Diameter (in) 7.689
Flange Diameter (in) 8.375
Face Width (in) 4.688
Overall Length (in) 5.156
Min. Bore (in) 0.875
Unit System Inch
Bushing E
P.D. (mm) 198.00
O.D. (mm) 195.30
MOQ 1
Weight (lb) 26.41
Part Number Cross Reference 28XH400E, 28XH400E, 28XH400-E, 20182021, 28XH400, 28XH400QD, 28XH400-E, P28XH400 E, 28XH400E, Q28XH400, QD28XH400, QD28XH400
