QD30H100, Timing Pulley

QD30H100 - Cast Iron Imperial Pitch Pulleys

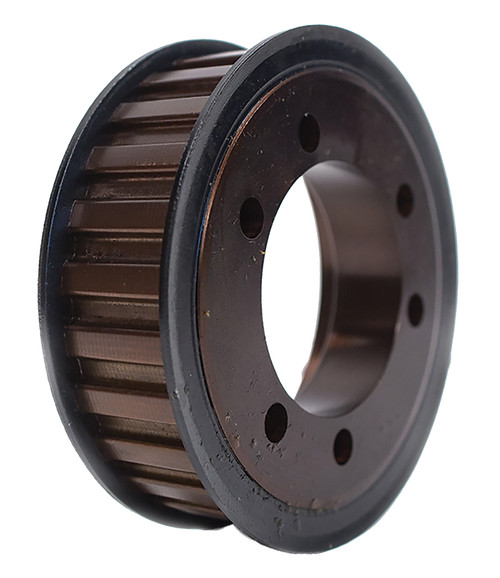

QD30H100

Click to Enlarge

QD30H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD30H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD30H100
Teeth 30
Tooth Style H
For Belt Width (in) 1.0000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SD
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.721
Flange Diameter (in) 5.000
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing SD
P.D. (mm) 121.00
O.D. (mm) 119.90
MOQ 1
Weight (lb) 4.56
Part Number Cross Reference 30H100SD, 30H100.SD, 30H100SD, 30H100-SD, 20182025, 30H100, 30H100QD, 30H100-SD, P30H100 SD, Q30H100, QD30H100
