QD30XXH500, Timing Pulley

QD30XXH500 - Cast Iron Imperial Pitch Pulleys

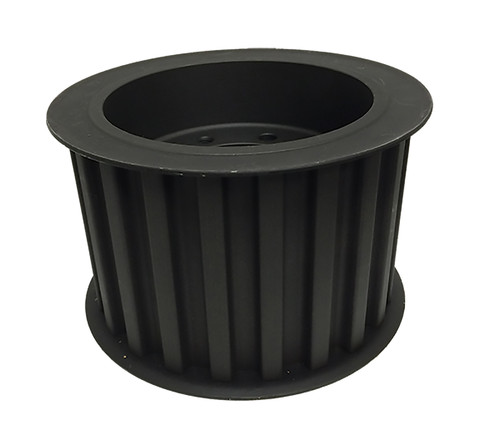

QD30XXH500

Click to Enlarge

QD30XXH500, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD30XXH500 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD30XXH500
Teeth 30
Tooth Style XXH
For Belt Width (in) 5.0000
Type D2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for J Bushing
Pitch Diameter (in) 11.937
Outside Diameter (in) 11.817
Flange Diameter (in) 12.688
Face Width (in) 2.625
Overall Length (in) 3.969
Min. Bore (in) 1.5
Unit System Inch
Bushing J
P.D. (mm) 303.00
O.D. (mm) 300.10
MOQ 1
Weight (lb) 89.00
Part Number Cross Reference 30XXH500J, 30XXH500J, 30XXH500-J, 20182039, 30XXH500, 30XXH500QD, 30XXH500-J, P30XXH500 J, 30XXH500J, Q30XXH500, QD30XXH500, QD30XXH500

Comparable to: 30XXH500J, 30XXH500J, 30XXH500-J, 20182039, 30XXH500, 30XXH500QD, 30XXH500-J, P30XXH500 J, 30XXH500J, Q30XXH500, QD30XXH500, QD30XXH500
