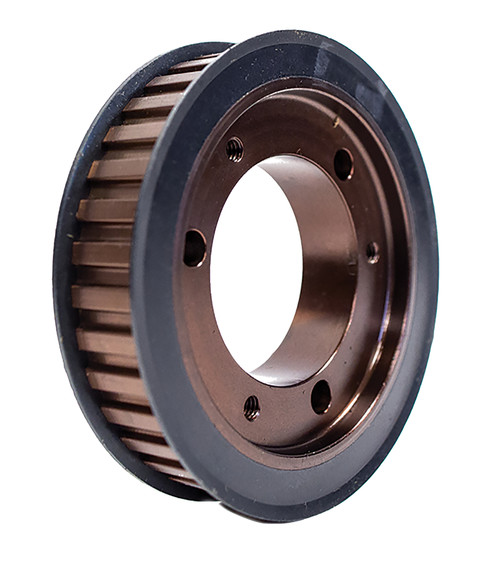

QD36L075, Timing Pulley

QD36L075 - Cast Iron Imperial Pitch Pulleys

QD36L075

Click to Enlarge

QD36L075, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD36L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD36L075
Teeth 36
Tooth Style L
For Belt Width (in) 0.7500
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.520
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing SDS
P.D. (mm) 109.00
O.D. (mm) 108.40
MOQ 1
Weight (lb) 2.30
Part Number Cross Reference 36L075SDS, 36L075.SDS, 36L075SDS, 36L075-SDS, 20182066, 36L075, 36L075QD, 36L075-SDS, P36L075 SDS, Q36L075, QD36L075
