QD40L075, Timing Pulley

QD40L075

Click to Enlarge

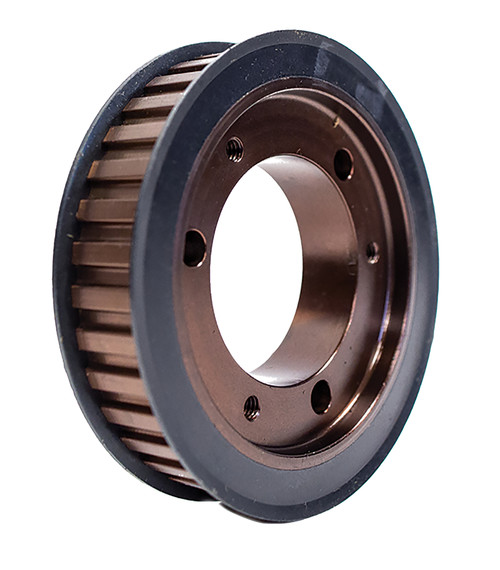

QD40L075, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD40L075
Teeth	40
Tooth Style	L
For Belt Width (in)	0.7500
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SDS Bushing
Pitch Diameter (in)	4.775
Outside Diameter (in)	4.745
Flange Diameter (in)	5.000
Face Width (in)	1.000
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.820
Unit System	Inch
Bushing	SDS
P.D. (mm)	121.00
O.D. (mm)	120.50
MOQ	1
Weight (lb)	3.38
Part Number Cross Reference	40L075-SDS, 40L075SDS, 40L075.SDS, 40L075SDS, 40L075-SDS, 20182081, 40L075, 40L075QD, 40L075-SDS, P40L075 SDS, 40L075SDS, 6495K32, Q40L075, QD40L075, QD40L075
