QD44-14M-40, Timing Pulley

QD44-14M-40 - Cast Iron Powerhouse®HTD® Pulleys

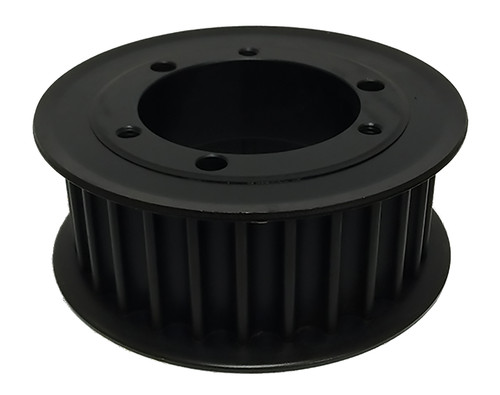

QD44-14M-40

Click to Enlarge

QD44-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD44-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD44-14M-40
Teeth 44
Tooth Style HTD14mm
For Belt Width (mm) 40.00
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 7.720
Outside Diameter (in) 7.610
Flange Diameter (in) 8.220
Face Width (in) 2.125
Overall Length (in) 2.125
Min. Bore (in) 0.875
Unit System Metric
Bushing E
P.D. (mm) 196.00
O.D. (mm) 193.30
MOQ 1
Weight (lb) 16.50
Part Number Cross Reference 14M44QD85.E, P44-14M-40-E, 20182349, P44-14M-40-E HTD SPKT, P4414M40, P44-14M-40-E, P44-14M-40-E, P44-14M-40, P44-14M-40-E, QD44-14M-40, 110788, QD44-14M-40

Comparable to: 14M44QD85.E, P44-14M-40-E, 20182349, P44-14M-40-E HTD SPKT, P4414M40, P44-14M-40-E, P44-14M-40-E, P44-14M-40, P44-14M-40-E, QD44-14M-40, 110788, QD44-14M-40
