QD44-14M-55, Timing Pulley

QD44-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD44-14M-55

Comparable to: 14M44QD55.E, P44-14M-55-E, 20182350, 110813, P4414M55, P44-14M-55

Click to Enlarge

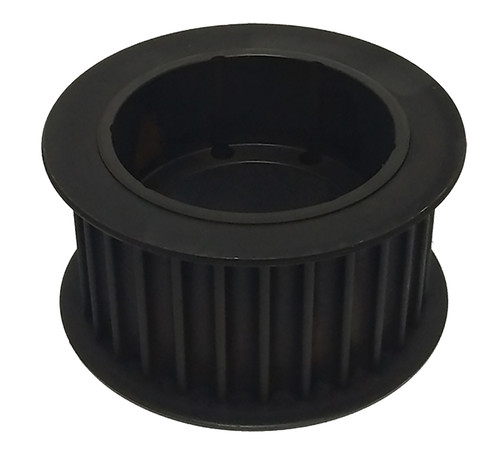

QD44-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD44-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD44-14M-55
Teeth 44
Tooth Style HTD 14mm
For Belt Width (mm) 55
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) E
Pitch Diameter (in) 7.720
Outside Diameter (in) 7.610
Flange Diameter (in) 8.220
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Weight (lb) 19.00
Part Number Cross Reference 14M44QD55.E, P44-14M-55-E, 20182350, 110813, P4414M55, P44-14M-55
