QD48-8M-85, Timing Pulley

QD48-8M-85 - Cast Iron Powerhouse®HTD® Pulleys

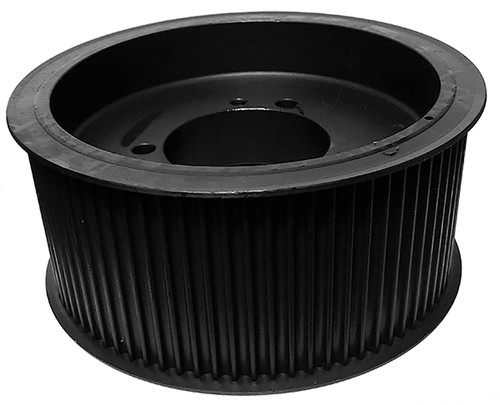

QD48-8M-85

Click to Enlarge

QD48-8M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD48-8M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD48-8M-85
Teeth 48
Tooth Style HTD8mm
For Belt Width (mm) 85.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SD Bushing
Pitch Diameter (in) 4.812
Outside Diameter (in) 4.760
Flange Diameter (in) 5.157
Face Width (in) 3.750
Overall Length (in) 3.750
Min. Bore (in) 0.5
Pulley Belt Width (in) 3.500
Unit System Metric
Bushing SD
P.D. (mm) 122.00
O.D. (mm) 120.90
MOQ 1
Weight (lb) 7.97
Part Number Cross Reference P488M85-SD, 8M48QD85.SD, B488M85SD, P48-8M-85-SFL, 20182377, P48-8M-85-SD HTD SPKT, P488M85, P48-8M-85-SD, P48-8M-85-SFL, P48-8M-85, P488M85SD, P48-8M-85-SD, QD48-8M-85, 110765, QD48-8M-85

Comparable to: P488M85-SD, 8M48QD85.SD, B488M85SD, P48-8M-85-SFL, 20182377, P48-8M-85-SD HTD SPKT, P488M85, P48-8M-85-SD, P48-8M-85-SFL, P48-8M-85, P488M85SD, P48-8M-85-SD, QD48-8M-85, 110765, QD48-8M-85

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
