QD48L100, Timing Pulley

QD48L100 - Cast Iron Imperial Pitch Pulleys

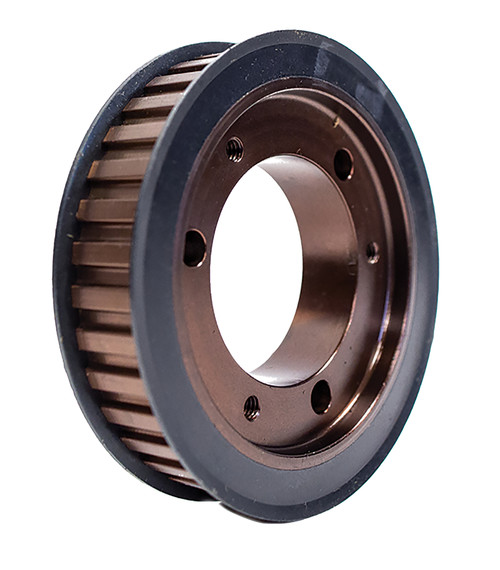

QD48L100

Click to Enlarge

QD48L100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD48L100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD48L100
Teeth 48
Tooth Style L
For Belt Width (in) 1.0000
Type B1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SDS Bushing
Pitch Diameter (in) 5.730
Outside Diameter (in) 5.700
Flange Diameter (in) 5.950
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.070
Unit System Inch
Bushing SDS
P.D. (mm) 146.00
O.D. (mm) 144.80
MOQ 1
Weight (lb) 5.11
Part Number Cross Reference 48L100-SDS, 48L100SDS, 48L100.SDS, 48L100SDS, 48L100-SDS, 20182111, 48L100, 48L100QD, 48L100-SDS, P48L100 SDS, 48L100SDS, 6495K421, Q48L100, QD48L100, QD48L100

Comparable to: 48L100-SDS, 48L100SDS, 48L100.SDS, 48L100SDS, 48L100-SDS, 20182111, 48L100, 48L100QD, 48L100-SDS, P48L100 SDS, 48L100SDS, 6495K421, Q48L100, QD48L100, QD48L100
