QD56-8M-20, Timing Pulley

QD56-8M-20

Click to Enlarge

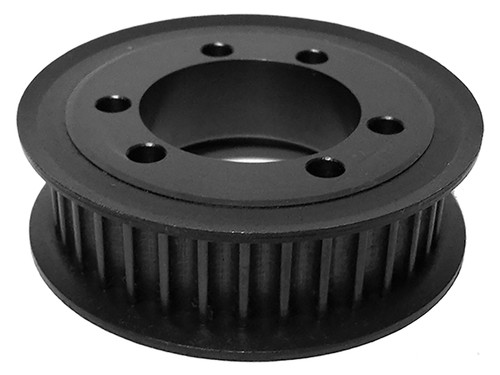

QD56-8M-20, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD56-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD56-8M-20
Teeth	56
Tooth Style	HTD8mm
For Belt Width (mm)	20.00
Type	C1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SDS Bushing
Pitch Diameter (in)	5.614
Outside Diameter (in)	5.562
Flange Diameter (in)	5.945
Face Width (in)	1.125
Overall Length (in)	1.125
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.875
Unit System	Metric
Bushing	SDS
P.D. (mm)	143.00
O.D. (mm)	141.30
MOQ	1
Weight (lb)	5.30
Part Number Cross Reference	P568M20-SDS, 8M56QD20.SDS, B568M20SDS, P56-8M-20-SDS, 20182402, P56-8M-20-SDS HTD SPKT, P568M20, P56-8M-20-SDS, P56-8M-20-SDS, P56-8M-20, P568M20SDS, 6497K123, 3PEC8, P56-8M-20-SDS, QD56-8M-20, 110712, QD56-8M-20
