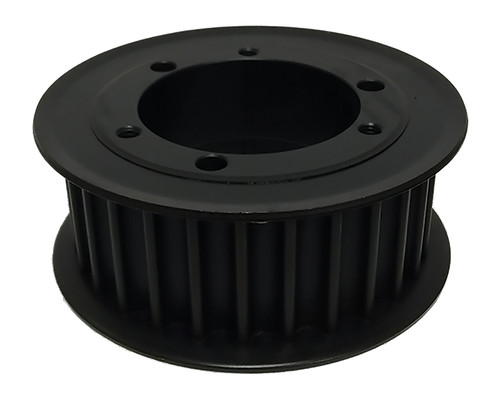

QD60-14M-40, Timing Pulley

QD60-14M-40

Click to Enlarge

QD60-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD60-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD60-14M-40
Teeth	60
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	D1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	10.527
Outside Diameter (in)	10.417
Flange Diameter (in)	11.060
Face Width (in)	2.125
Overall Length (in)	2.125
Min. Bore (in)	0.875
Unit System	Metric
Bushing	E
P.D. (mm)	267.00
O.D. (mm)	264.60
MOQ	1
Weight (lb)	29.00
Part Number Cross Reference	14M60QD85.E, P60-14M-40-E, 20182409, P60-14M-40-E HTD SPKT, P6014M40, P60-14M-40-E, P60-14M-40-E, P60-14M-40, P60-14M-40-E, QD60-14M-40, 110792, QD60-14M-40
