QD60-14M-55, Timing Pulley

QD60-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

QD60-14M-55

Click to Enlarge

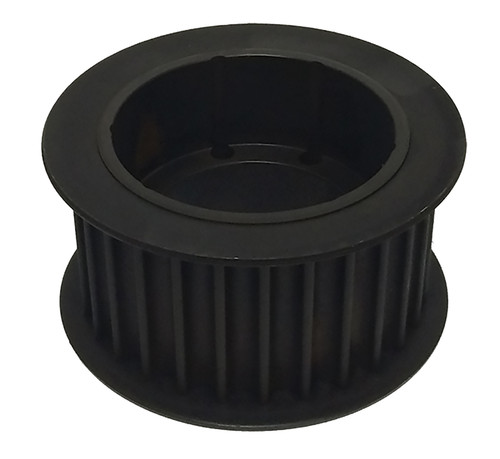

QD60-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD60-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD60-14M-55
Teeth 60
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 10.527
Outside Diameter (in) 10.417
Flange Diameter (in) 11.060
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.875
Unit System Metric
Bushing E
P.D. (mm) 267.00
O.D. (mm) 264.60
MOQ 1
Weight (lb) 36.00
Part Number Cross Reference 14M60QD55.E, P60-14M-55-E, 20182410, P60-14M-55-E HTD SPKT, P6014M55, P60-14M-55-E, P60-14M-55-E, P60-14M-55, P60-14M-55-E, QD60-14M-55, 110817, QD60-14M-55

Comparable to: 14M60QD55.E, P60-14M-55-E, 20182410, P60-14M-55-E HTD SPKT, P6014M55, P60-14M-55-E, P60-14M-55-E, P60-14M-55, P60-14M-55-E, QD60-14M-55, 110817, QD60-14M-55

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
