QD60-5M-15, Timing Pulley

QD60-5M-15 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD60-5M-15

Comparable to: 5M60QD15.SH, P60-5M-15-SH, 20182417, 114647, P60-5M-15

Click to Enlarge

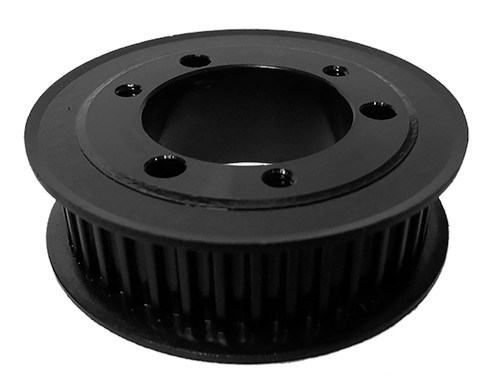

QD60-5M-15, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD60-5M-15 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD60-5M-15
Teeth 60
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type D1F
Material Ductile Iron
Finish Black Oxide
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 3.760
Outside Diameter (in) 3.715
Flange Diameter (in) 4.044
Face Width (in) 0.840
Overall Length (in) 0.840
Hub Diameter (in) 0.390
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.650
Unit System Inch
Bushing SH
MOQ 1
Weight (lb) 1.70
Part Number Cross Reference 5M60QD15.SH, P60-5M-15-SH, 20182417, 114647, P60-5M-15
