QD72-14M-40, Timing Pulley

QD72-14M-40

Click to Enlarge

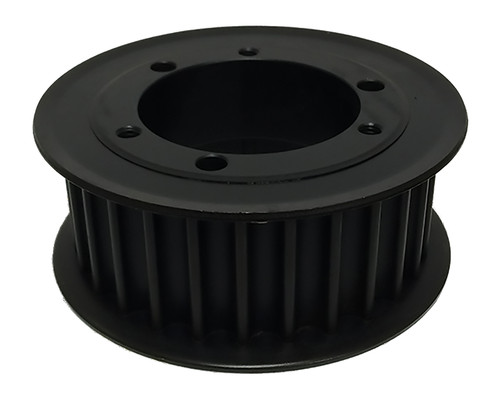

QD72-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD72-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD72-14M-40
Teeth	72
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	D2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	12.632
Outside Diameter (in)	12.522
Flange Diameter (in)	13.190
Face Width (in)	2.125
Overall Length (in)	2.125
Min. Bore (in)	0.875
Unit System	Metric
Bushing	E
P.D. (mm)	321.00
O.D. (mm)	318.10
MOQ	1
Weight (lb)	33.00
Part Number Cross Reference	14M72QD85.E, P72-14M-40-E, 20182450, P72-14M-40-E HTD SPKT, P7214M40, P72-14M-40-E, P72-14M-40-E, P72-14M-40, P72-14M-40-E, QD72-14M-40, 110795, QD72-14M-40
