QD72-14M-85, Timing Pulley

QD72-14M-85 - Cast Iron Powerhouse®HTD® Pulleys

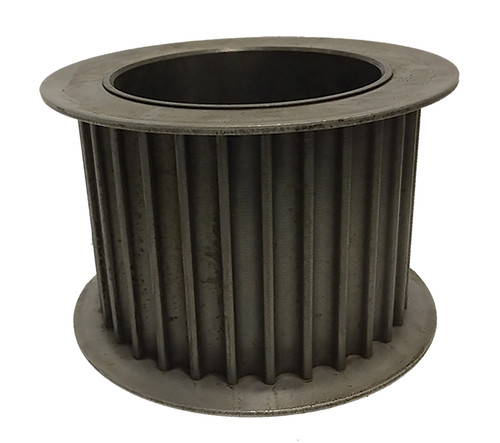

QD72-14M-85

Click to Enlarge

QD72-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD72-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD72-14M-85
Teeth 72
Tooth Style HTD14mm
For Belt Width (mm) 85.00
Type D2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 12.632
Outside Diameter (in) 12.522
Flange Diameter (in) 13.190
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 1
Unit System Metric
Bushing F
P.D. (mm) 321.00
O.D. (mm) 318.10
MOQ 1
Weight (lb) 60.38
Part Number Cross Reference 14M72QD85.F, P72-14M-85-F, 20182452, P72-14M-85-F HTD SPKT, P7214M85, P72-14M-85-F, P72-14M-85-F, P72-14M-85, P72-14M-85-F, QD72-14M-85, 110844, QD72-14M-85

Comparable to: 14M72QD85.F, P72-14M-85-F, 20182452, P72-14M-85-F HTD SPKT, P7214M85, P72-14M-85-F, P72-14M-85-F, P72-14M-85, P72-14M-85-F, QD72-14M-85, 110844, QD72-14M-85
