QD72-8M-30, Timing Pulley

QD72-8M-30 - Cast Iron Powerhouse®HTD® Pulleys

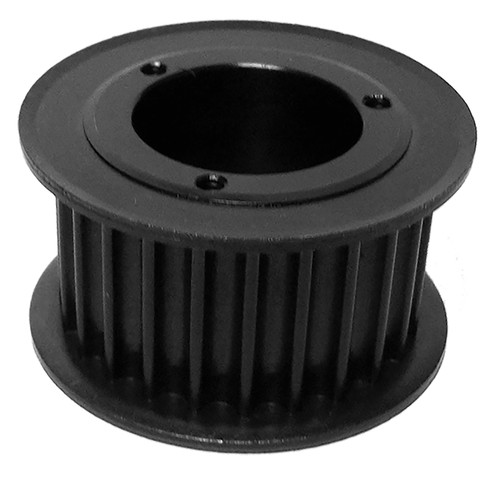

QD72-8M-30

Click to Enlarge

QD72-8M-30, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD72-8M-30 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD72-8M-30
Teeth 72
Tooth Style HTD8mm
For Belt Width (mm) 30.00
Type C2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 7.218
Outside Diameter (in) 7.166
Flange Diameter (in) 7.598
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.250
Unit System Metric
Bushing SK
P.D. (mm) 183.00
O.D. (mm) 182.00
MOQ 1
Weight (lb) 9.24
Part Number Cross Reference P728M30-SK, 8M72QD30.SK, B728M30SK, P72-8M-30-SK, 20182461, P72-8M-30-SK HTD SPKT, P728M30, P72-8M-30-SK, P72-8M-30-SK, P72-8M-30, P728M30SK, 2UWP5, P72-8M-30-SK, QD72-8M-30, 110734, QD72-8M-30

Comparable to: P728M30-SK, 8M72QD30.SK, B728M30SK, P72-8M-30-SK, 20182461, P72-8M-30-SK HTD SPKT, P728M30, P72-8M-30-SK, P72-8M-30-SK, P72-8M-30, P728M30SK, 2UWP5, P72-8M-30-SK, QD72-8M-30, 110734, QD72-8M-30
