QD80-14M-40, Timing Pulley

QD80-14M-40

Click to Enlarge

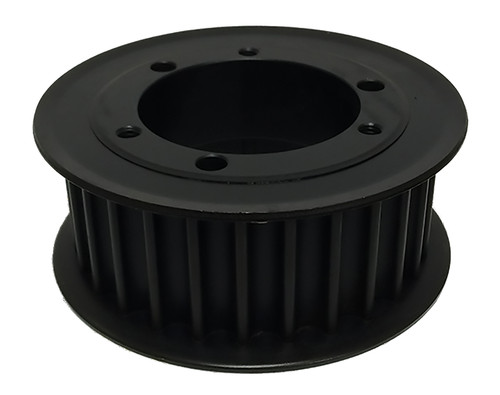

QD80-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD80-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD80-14M-40
Teeth	80
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	D2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	14.036
Outside Diameter (in)	13.926
Flange Diameter (in)	14.630
Face Width (in)	2.125
Overall Length (in)	2.125
Min. Bore (in)	0.875
Unit System	Metric
Bushing	E
P.D. (mm)	356.00
O.D. (mm)	353.70
MOQ	1
Weight (lb)	38.00
Part Number Cross Reference	14M80QD85.E, P80-14M-40-E, 20182467, P80-14M-40-E HTD SPKT, P8014M40, P80-14M-40-E, P80-14M-40-E, P80-14M-40, P80-14M-40-E, QD80-14M-40, 110796, QD80-14M-40
