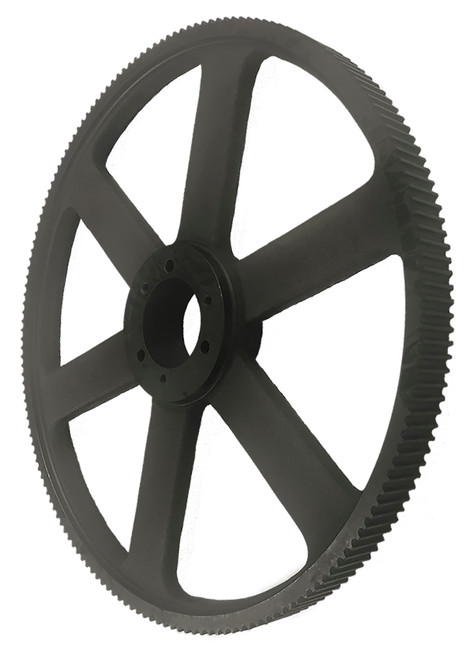

QD90-14M-40, Timing Pulley

QD90-14M-40

Click to Enlarge

QD90-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD90-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD90-14M-40
Teeth	90
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	D-3
Material	Cast Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	15.790
Outside Diameter (in)	15.680
Face Width (in)	2.125
Overall Length (in)	2.125
Min. Bore (in)	0.875
Unit System	Metric
Bushing	E
P.D. (mm)	401.00
O.D. (mm)	398.30
MOQ	1
Weight (lb)	29.00
Part Number Cross Reference	14M90QD85.E, P90-14M-40-E, 20182484, P90-14M-40-E HTD SPKT, P9014M40, P90-14M-40-E, P90-14M-40-E, P90-14M-40, P90-14M-40-E, QD90-14M-40, 110797, QD90-14M-40
