QD90-8M-50, Timing Pulley

QD90-8M-50

Click to Enlarge

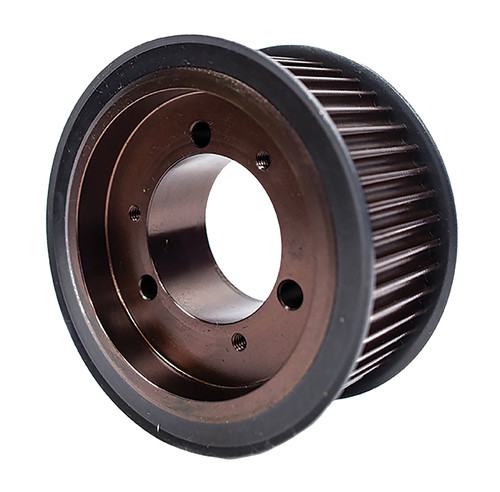

QD90-8M-50, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD90-8M-50 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD90-8M-50
Teeth	90
Tooth Style	HTD8mm
For Belt Width (mm)	50.00
Type	D2F
Material	Cast Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	9.023
Outside Diameter (in)	8.971
Face Width (in)	2.375
Overall Length (in)	2.375
Min. Bore (in)	0.5
Pulley Belt Width (in)	2.125
Unit System	Metric
Bushing	SF
P.D. (mm)	229.00
O.D. (mm)	227.90
MOQ	1
Weight (lb)	10.35
Part Number Cross Reference	P908M50-SF, 8M90QD50.SF, B908M50SF, P90-8M-50-SF, 20182496, P90-8M-50-SF HTD SPKT, P908M50, P90-8M-50-SF, P90-8M-50-SF, P90-8M-50, P908M50SF, P90-8M-50-SF, QD90-8M-50, 110753, QD90-8M-50
