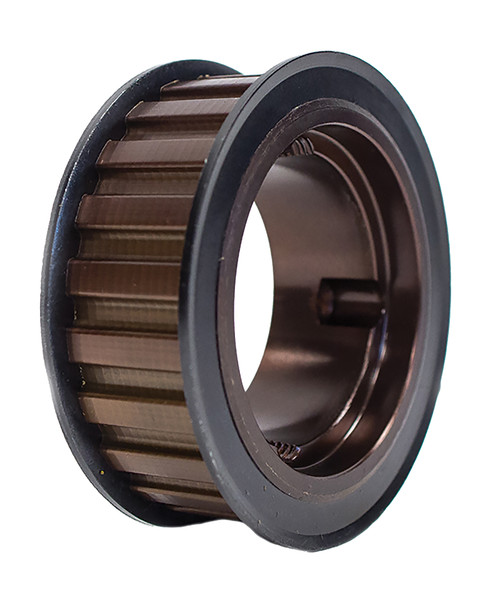

TL14H100-1008 Imperial Pitch Pulleys

TL14H100-1008, TL14H100 1008, 201824

Product Details for TL14H100-1008

Comparable to: TL14H100-1008, TL14H100 1008, 201824

TL14H100-1008, Timing Pulley, Powerhouse Timing, 1008 Bushing, Steel

Specifications

Product Number TL14H100-1008
Teeth 14
Tooth Style H
For Belt Width (in) 1.000
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1008
Pitch Diameter (in) 2.228
Outside Diameter (in) 2.174
Flange Diameter (in) 2.461
Face Width (in) 1.312
Overall Length (in) 1.312
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 1008
Weight (lb) 0.80
Part Number Cross Reference TL14H100-1008, TL14H100 1008, 201824
