TL16H100-1008 Imperial Pitch Pulleys

TL16H100-1008, TL16H100 1008, 20182501

Product Details for TL16H100-1008

Comparable to: TL16H100-1008, TL16H100 1008, 20182501

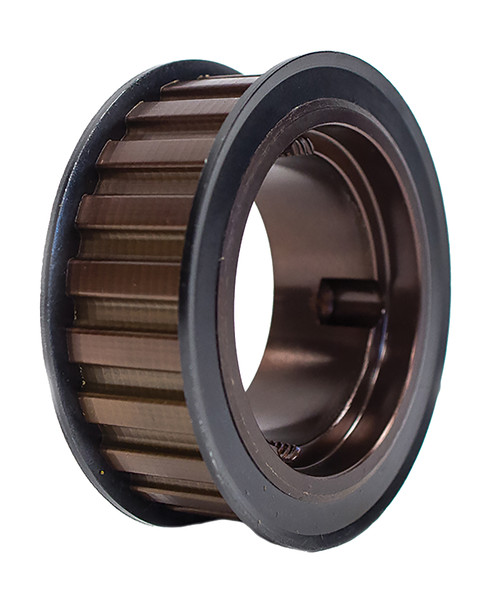

TL16H100-1008, Timing Pulley, Powerhouse Timing, 1008 Bushing, Steel

Specifications

Product Number TL16H100-1008
Teeth 16
Tooth Style H
For Belt Width (in) 1.000
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1008
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.492
Flange Diameter (in) 2.780
Face Width (in) 1.312
Overall Length (in) 1.312
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 1008
Weight (lb) 1.30
List Price (1-9 Qty.) (USD) 34.6
Discount Price (10-24 Qty.) (USD) 32.01
Discount Price (25-49 Qty.) (USD) 28.8
Part Number Cross Reference TL16H100-1008, TL16H100 1008, 20182501

Documentation

Download Catalog 2015_BBMAN_CATALOG_52.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL16H100-1008_REACH_cert
RoHS Certification TL16H100-1008_RoHS_cert
