TL16H150, Timing Pulley

TL16H150 - Steel Imperial Pitch Pulleys

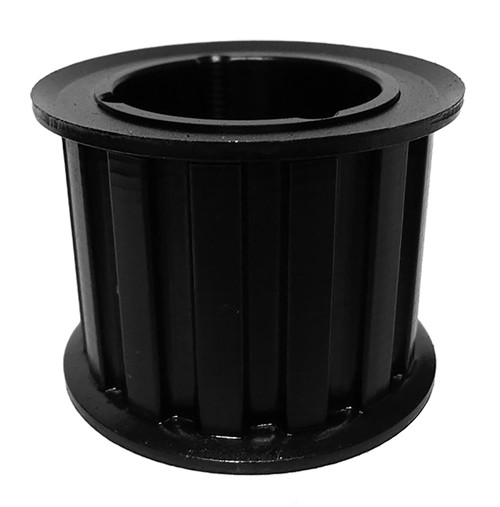

TL16H150

Click to Enlarge

TL16H150, Timing Pulley, Steel, Black Oxide,

Learn more about TL16H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL16H150
Teeth 16
Tooth Style H
For Belt Width (in) 1.5000
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1008 Bushing
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.492
Flange Diameter (in) 2.780
Face Width (in) 1.812
Overall Length (in) 1.812
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 1008
P.D. (mm) 65.00
O.D. (mm) 63.30
MOQ 1
Weight (lb) 1.54
Part Number Cross Reference TL16H150, TB16H150, 16 H 150 TL, TL16H150 1008, 20182502, 113692, TL16H150 1008, TL16H150, P16H150-1108, TL16H150, 113692, TL16H150

Comparable to: TL16H150, TB16H150, 16 H 150 TL, TL16H150 1008, 20182502, 113692, TL16H150 1008, TL16H150, P16H150-1108, TL16H150, 113692, TL16H150
