TL16H200 Imperial Pitch Pulleys

TL16H200, TL16H200 1008, 20182503, 113072, P16H200-11

Product Details for TL16H200

Comparable to: TL16H200, TL16H200 1008, 20182503, 113072, P16H200-11

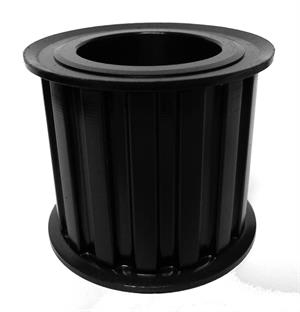

TL16H200, Timing Pulley, Powerhouse Timing, 1008 Bushing, Steel

Specifications

Product Number TL16H200
Teeth 16
Tooth Style H
For Belt Width (in) 2.000
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1008
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.492
Flange Diameter (in) 2.780
Face Width (in) 2.344
Overall Length (in) 2.344
Pulley Belt Width (in) 2.094
Unit System Inch
Bushing 1008
Weight (lb) 1.90
Part Number Cross Reference TL16H200, TL16H200 1008, 20182503, 113072, P16H200-11
