TL18H100, Timing Pulley

TL18H100 - Steel Imperial Pitch Pulleys

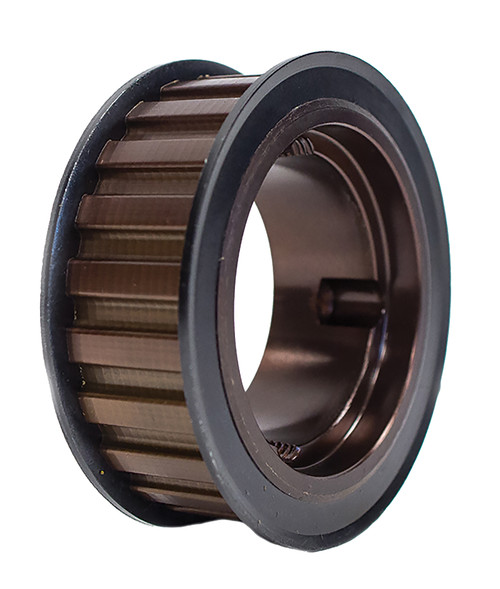

TL18H100

Click to Enlarge

TL18H100, Timing Pulley, Steel, Black Oxide,

Learn more about TL18H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL18H100
Teeth 18
Tooth Style H
For Belt Width (in) 1.0000
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.811
Flange Diameter (in) 3.100
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 1210
P.D. (mm) 73.00
O.D. (mm) 71.40
MOQ 1
Weight (lb) 1.22
Part Number Cross Reference TL18H100, TB18H100, 18 H 100 TL, TL18H100 1210, 20182504, 113605, TL18H100 1210, TL18H100, TB 18-H-100, P18H100-1210, TL18H100

Related Products

Comparable to: TL18H100, TB18H100, 18 H 100 TL, TL18H100 1210, 20182504, 113605, TL18H100 1210, TL18H100, TB 18-H-100, P18H100-1210, TL18H100
