TL18H300, Timing Pulley

TL18H300 - Steel Imperial Pitch Pulleys

TL18H300

Click to Enlarge

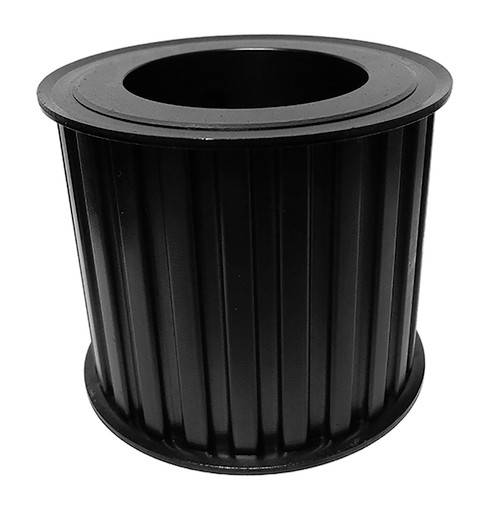

TL18H300, Timing Pulley, Steel, Black Oxide,

Learn more about TL18H300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL18H300
Teeth 18
Tooth Style H
For Belt Width (in) 3.0000
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1215 Bushing
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.811
Flange Diameter (in) 3.100
Face Width (in) 3.375
Overall Length (in) 3.375
Min. Bore (in) 0.5
Pulley Belt Width (in) 3.125
Unit System Inch
Bushing 1215
P.D. (mm) 73.00
O.D. (mm) 71.40
MOQ 1
Weight (lb) 3.08
Part Number Cross Reference TL18H300, TB18H300, TL18H300 1215, 20182507, TL18H300-1215 DYNA-SYNC SPKT, TL18H300 1215, TL18H300, TL18H300, P18H300-1215, TL18H300, 113752, TL18H300

Comparable to: TL18H300, TB18H300, TL18H300 1215, 20182507, TL18H300-1215 DYNA-SYNC SPKT, TL18H300 1215, TL18H300, TL18H300, P18H300-1215, TL18H300, 113752, TL18H300
