TL18L050-1108, Timing Pulley

TL18L050-1108 - Steel Imperial Pitch Pulleys

TL18L050-1108

Click to Enlarge

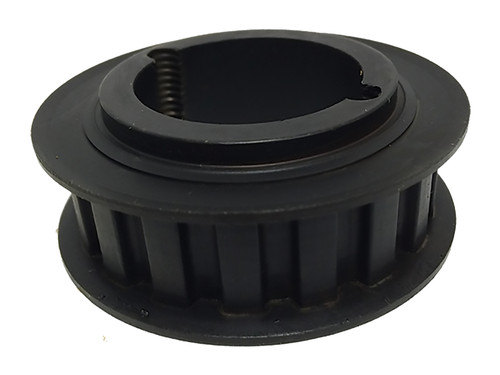

TL18L050-1108, Timing Pulley, Steel, Black Oxide,

Learn more about TL18L050-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL18L050-1108
Teeth 18
Tooth Style L
For Belt Width (in) 0.5000
Type 8F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.149
Outside Diameter (in) 2.119
Flange Diameter (in) 2.375
Face Width (in) 0.750
Overall Length (in) 0.875
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing 1108
P.D. (mm) 55.00
O.D. (mm) 53.80
MOQ 1
Weight (lb) 0.44
Part Number Cross Reference TL18L050, 18 L 050 TL.1108, TL18L050-1108 DYNA-SYNC SPKT, TL18L050, TB 18-L-050, P18L050-1108, TL18L050-1108, 113575, TL18L050-1108

Comparable to: TL18L050, 18 L 050 TL.1108, TL18L050-1108 DYNA-SYNC SPKT, TL18L050, TB 18-L-050, P18L050-1108, TL18L050-1108, 113575, TL18L050-1108

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
