TL20H100 Imperial Pitch Pulleys

TL20H100, TL20H100 1210, 20182511, 113608, P20H100-12

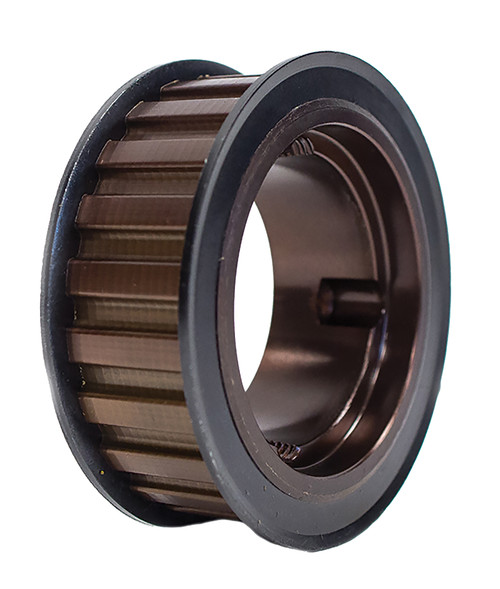

Product Details for TL20H100

Comparable to: TL20H100, TL20H100 1210, 20182511, 113608, P20H100-12

TL20H100, Timing Pulley, Powerhouse Timing, 1210 Bushing, Cast Iron

Specifications

Product Number TL20H100
Teeth 20
Tooth Style H
For Belt Width (in) 1.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 3.183
Outside Diameter (in) 3.129
Flange Diameter (in) 3.256
Face Width (in) 1.312
Overall Length (in) 1.312
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 1210
Weight (lb) 1.70
Part Number Cross Reference TL20H100, TL20H100 1210, 20182511, 113608, P20H100-12
