TL20H150, Timing Pulley

TL20H150 - Cast Iron Imperial Pitch Pulleys

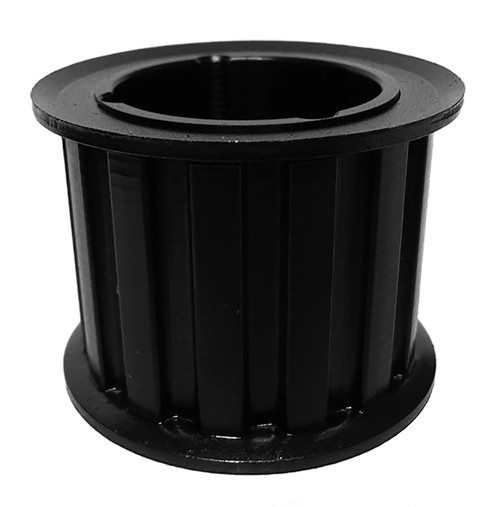

TL20H150

Click to Enlarge

TL20H150, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL20H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL20H150
Teeth 20
Tooth Style H
For Belt Width (in) 1.5000
Type 3F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1215
Pitch Diameter (in) 3.183
Outside Diameter (in) 3.129
Flange Diameter (in) 3.256
Face Width (in) 1.812
Overall Length (in) 1.812
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 1215
P.D. (mm) 81.00
O.D. (mm) 79.50
MOQ 1
Weight (lb) 2.24
Part Number Cross Reference TL20H150, TB20H150, 20 H 150 TL, TL20H150 1215, 20182512, 113694, TL20H150 1215, TL20H150, TB 20-H-150, P20H150-1210, TL20H150

Related Products

Comparable to: TL20H150, TB20H150, 20 H 150 TL, TL20H150 1215, 20182512, 113694, TL20H150 1215, TL20H150, TB 20-H-150, P20H150-1210, TL20H150
