TL20L050-1008, Timing Pulley

TL20L050-1008 - Steel Imperial Pitch Pulleys

TL20L050-1008

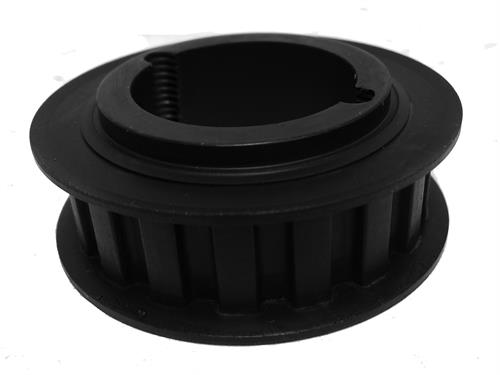

Click to Enlarge

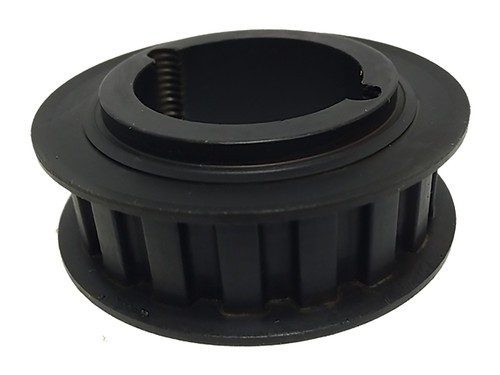

TL20L050-1008, Timing Pulley, Steel, Black Oxide,

Learn more about TL20L050-1008 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL20L050-1008
Teeth 20
Tooth Style L
For Belt Width (in) 0.5000
Type 8F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1008 Bushing
Pitch Diameter (in) 2.387
Outside Diameter (in) 2.357
Flange Diameter (in) 2.625
Face Width (in) 0.750
Overall Length (in) 0.875
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing 1008
P.D. (mm) 61.00
O.D. (mm) 59.90
MOQ 1
Weight (lb) 0.68
Part Number Cross Reference TL20L050, TL-20L050-1008, TB20L050, TL20L050 1008, 20182515, TL20L050-1008, TL20L050 1008, TL20L050, TL20L050, TL20L050-1008, TL20L050-1008

Comparable to: TL20L050, TL-20L050-1008, TB20L050, TL20L050 1008, 20182515, TL20L050-1008, TL20L050 1008, TL20L050, TL20L050, TL20L050-1008, TL20L050-1008

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
