TL20L100-1108 Imperial Pitch Pulleys

TL20L100-1108, TL20L100, 113641, P20L100-11

Product Details for TL20L100-1108

Comparable to: TL20L100-1108, TL20L100, 113641, P20L100-11

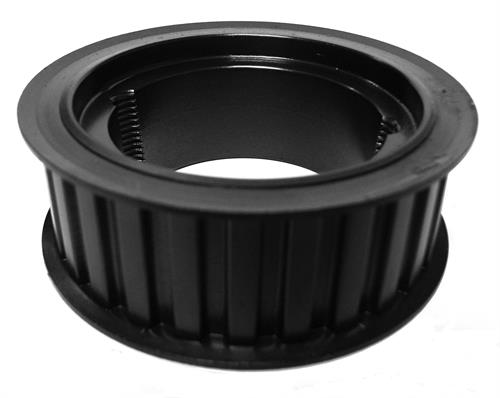

TL20L100-1108, Timing Pulley, Powerhouse Timing, 1108 Bushing, Steel

Specifications

Product Number TL20L100-1108
Teeth 20
Tooth Style L
For Belt Width (in) 1.000
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.387
Outside Diameter (in) 2.357
Flange Diameter (in) 2.625
Face Width (in) 1.250
Overall Length (in) 1.250
Pulley Belt Width (in) 1.070
Unit System Inch
Bushing 1108
Weight (lb) 1.00
Part Number Cross Reference TL20L100-1108, TL20L100, 113641, P20L100-11

Documentation

Download Catalog 2015_BBMAN_CATALOG_47.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL20L100-1108_REACH_cert
RoHS Certification TL20L100-1108_RoHS_cert
