TL22H100, Timing Pulley

TL22H100 - Cast Iron Imperial Pitch Pulleys

TL22H100

Click to Enlarge

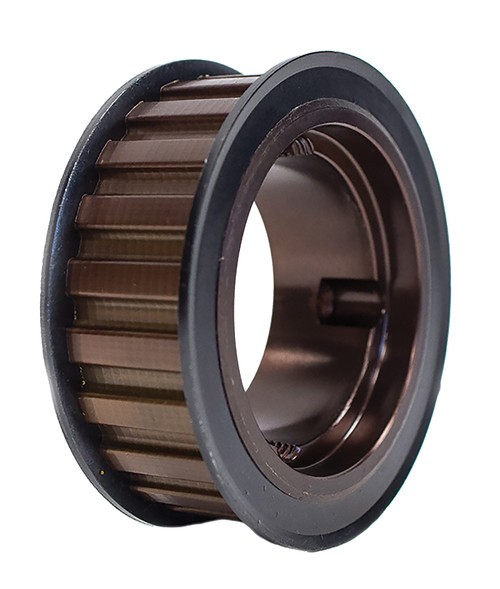

TL22H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL22H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL22H100
Teeth 22
Tooth Style H
For Belt Width (in) 1.0000
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.501
Outside Diameter (in) 3.447
Flange Diameter (in) 3.735
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 1610
P.D. (mm) 89.00
O.D. (mm) 87.60
MOQ 1
Weight (lb) 1.72
Part Number Cross Reference TL22H100, TB22H100, 22 H 100 TL, TL22H100 1610, 20182518, 113611, TL22H100 1610, TL22H100, TB 22-H-100, P22H100-1610, TL22H100
