TL22L050-1008 Imperial Pitch Pulleys

TL22L050-1008, TL22L050 1008, 201825

Product Details for TL22L050-1008

Comparable to: TL22L050-1008, TL22L050 1008, 201825

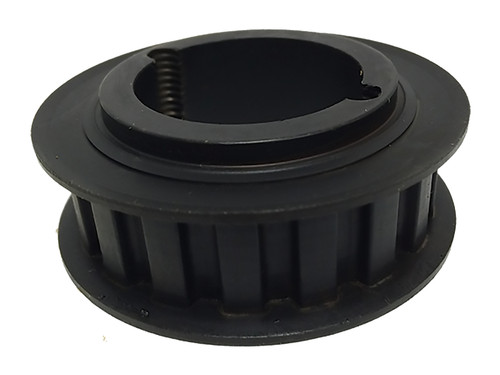

TL22L050-1008, Timing Pulley, Powerhouse Timing, 1008 Bushing, Steel

Specifications

Product Number TL22L050-1008
Teeth 22
Tooth Style L
For Belt Width (in) 0.500
Type 8F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1008
Pitch Diameter (in) 2.626
Outside Diameter (in) 2.596
Flange Diameter (in) 2.875
Face Width (in) 0.750
Overall Length (in) 0.875
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing 1008
Weight (lb) 0.90
Part Number Cross Reference TL22L050-1008, TL22L050 1008, 201825

Documentation

Download Catalog 2015_BBMAN_CATALOG_35.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL22L050-1008_REACH_cert
RoHS Certification TL22L050-1008_RoHS_cert
