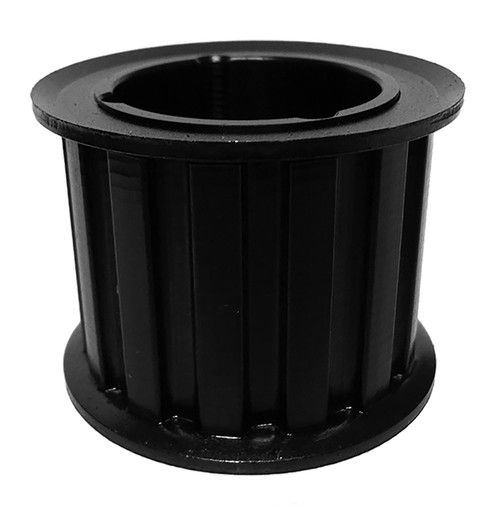

TL24H150 Imperial Pitch Pulleys

TL24H150, TL24H150 2012, 20182526, 113663, P24H150-2012

Product Details for TL24H150

Comparable to: TL24H150, TL24H150 2012, 20182526, 113663, P24H150-20

TL24H150, Timing Pulley, Powerhouse Timing, 2012 Bushing, Cast Iron

Specifications

Product Number TL24H150
Teeth 24
Tooth Style H
For Belt Width (in) 1.500
Type 3F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.766
Flange Diameter (in) 4.050
Face Width (in) 1.812
Overall Length (in) 1.812
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 2012
Max. Bore (in) 2.125
Weight (lb) 2.20
Part Number Cross Reference TL24H150, TL24H150 2012, 20182526, 113663, P24H150-20
