TL26H200 Imperial Pitch Pulleys

TL26H200, TL26H200 2012, 201825

Product Details for TL26H200

Comparable to: TL26H200, TL26H200 2012, 201825

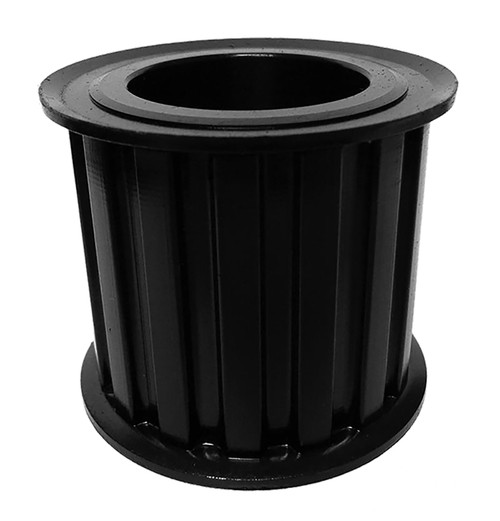

TL26H200, Timing Pulley, Powerhouse Timing, 2012 Bushing, Cast Iron

Specifications

Product Number TL26H200
Teeth 26
Tooth Style H
For Belt Width (in) 2.000
Type 2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.138
Outside Diameter (in) 4.084
Flange Diameter (in) 4.369
Face Width (in) 2.344
Overall Length (in) 2.344
Pulley Belt Width (in) 2.094
Unit System Inch
Bushing 2012
Weight (lb) 3.60
Part Number Cross Reference TL26H200, TL26H200 2012, 201825

Documentation

Download Catalog 2015_BBMAN_CATALOG_60.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL26H200_REACH_cert
RoHS Certification TL26H200_RoHS_cert
