TL26H300 Imperial Pitch Pulleys

TL26H300, TL26H300 2012, 20182535, 113762, P26H300-2012

Product Details for TL26H300

Comparable to: TL26H300, TL26H300 2012, 20182535, 113762, P26H300-2012

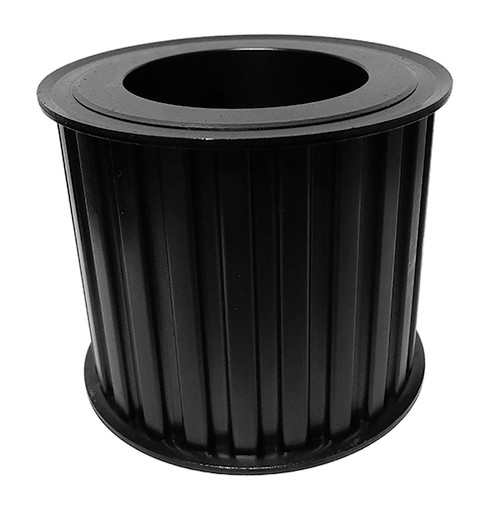

TL26H300, Timing Pulley, Powerhouse Timing, 2012 Bushing, Cast Iron

Specifications

Product Number TL26H300
Teeth 26
Tooth Style H
For Belt Width (in) 3.000
Type 2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.138
Outside Diameter (in) 4.084
Flange Diameter (in) 4.369
Face Width (in) 3.375
Overall Length (in) 3.375
Pulley Belt Width (in) 3.125
Unit System Inch
Bushing 2012
Weight (lb) 5.40
List Price (1-9 Qty.) (USD) 102.63
Discount Price (10-24 Qty.) (USD) 94.93
Discount Price (25-49 Qty.) (USD) 85.44
Part Number Cross Reference TL26H300, TL26H300 2012, 20182535, 113762, P26H300-2012

Documentation

Download Catalog 2015_BBMAN_CATALOG_64.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
