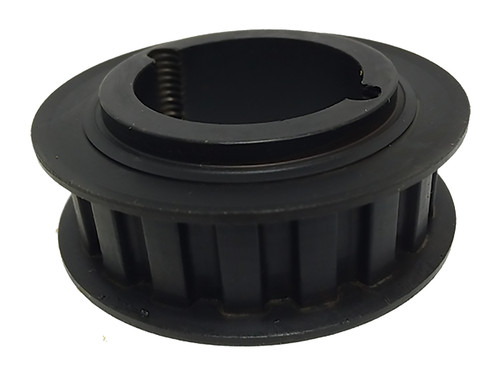

TL26L050, Timing Pulley

TL26L050 - Cast Iron Imperial Pitch Pulleys

TL26L050

Click to Enlarge

TL26L050, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL26L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL26L050
Teeth 26
Tooth Style L
For Belt Width (in) 0.5000
Type 8F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 3.104
Outside Diameter (in) 3.074
Flange Diameter (in) 3.330
Face Width (in) 0.750
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing 1210
P.D. (mm) 79.00
O.D. (mm) 78.10
MOQ 1
Weight (lb) 1.12
Part Number Cross Reference TL26L050, TB26L050 , 26 L 050 TL, TL26L050 1210, 20182536, 113466, TL26L050 1210, TL26L050, TB 26-L-050, P26L050-1210, TL26L050

Comparable to: TL26L050, TB26L050 , 26 L 050 TL, TL26L050 1210, 20182536, 113466, TL26L050 1210, TL26L050, TB 26-L-050, P26L050-1210, TL26L050
