TL26L075, Timing Pulley

TL26L075 - Cast Iron Imperial Pitch Pulleys

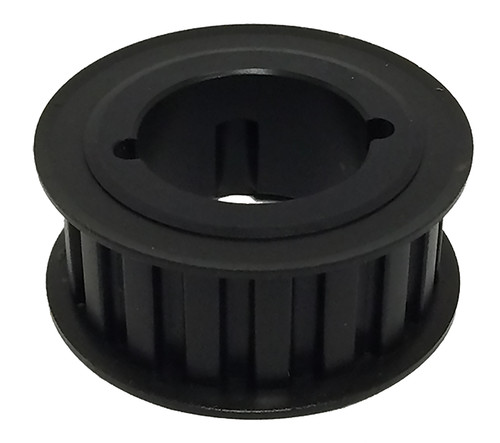

TL26L075

Click to Enlarge

TL26L075, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL26L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL26L075
Teeth 26
Tooth Style L
For Belt Width (in) 0.7500
Type 3F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.104
Outside Diameter (in) 3.074
Flange Diameter (in) 3.330
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing 1210
P.D. (mm) 79.00
O.D. (mm) 78.10
MOQ 1
Weight (lb) 1.24
Part Number Cross Reference TL26L075, TL-26L075-1210, TB26L075, 26 L 075 TL, TL26L075 1210, 20182537, TL26L075-1210 DYNA-SYNC SPKT, TL26L075 1210, TL26L075, TL26L075, TB 26-L-075, P26L075-1210, TL26L075, 113515, TL26L075

Comparable to: TL26L075, TL-26L075-1210, TB26L075, 26 L 075 TL, TL26L075 1210, 20182537, TL26L075-1210 DYNA-SYNC SPKT, TL26L075 1210, TL26L075, TL26L075, TB 26-L-075, P26L075-1210, TL26L075, 113515, TL26L075

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
