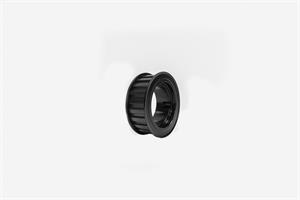

TL28H100, Timing Pulley

TL28H100 - Cast Iron Imperial Pitch Pulleys

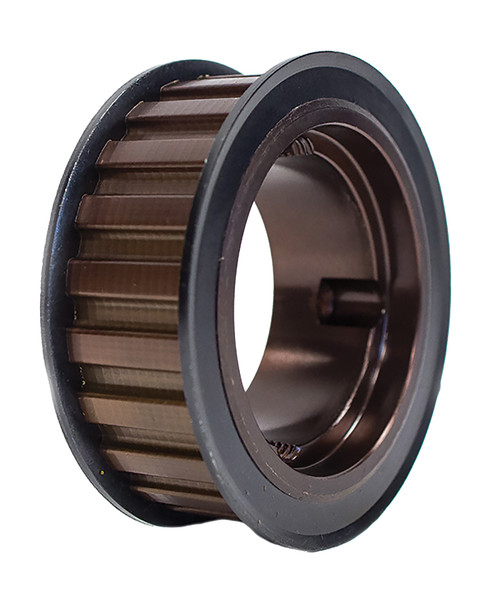

TL28H100

Click to Enlarge

TL28H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL28H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL28H100
Teeth 28
Tooth Style H
For Belt Width (in) 1.0000
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.456
Outside Diameter (in) 4.402
Flange Diameter (in) 4.687
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 2012
P.D. (mm) 113.00
O.D. (mm) 111.80
MOQ 1
Weight (lb) 3.20
Part Number Cross Reference TL28H100, TB28H100, 28 H 100 TL, TL28H100 2012, 20182539, 113617, TL28H100 2012, TL28H100, TB 28-H-100, P28H100-2012, TL28H100

Related Products

Comparable to: TL28H100, TB28H100, 28 H 100 TL, TL28H100 2012, 20182539, 113617, TL28H100 2012, TL28H100, TB 28-H-100, P28H100-2012, TL28H100
