TL28H150, Timing Pulley

TL28H150 - Cast Iron Imperial Pitch Pulleys

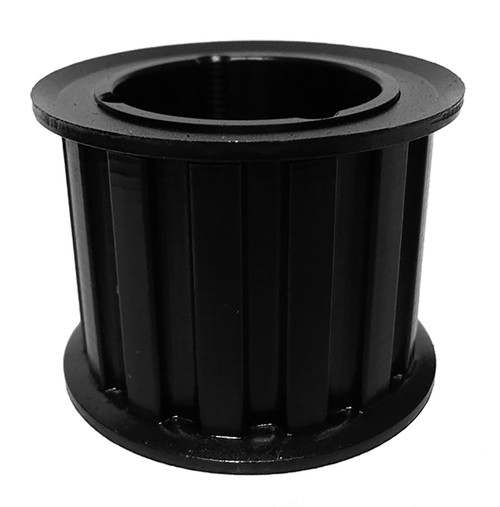

TL28H150

Click to Enlarge

TL28H150, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL28H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL28H150
Teeth 28
Tooth Style H
For Belt Width (in) 1.5000
Type 3F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 4.456
Outside Diameter (in) 4.402
Flange Diameter (in) 4.687
Face Width (in) 1.812
Overall Length (in) 1.812
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 2012
P.D. (mm) 113.00
O.D. (mm) 111.80
MOQ 1
Weight (lb) 4.45
Part Number Cross Reference TL28H150, TB28H150, 28 H 150 TL, TL28H150 2012, 20182540, TL28H150-2012 DYNA-SYNC SPKT, TL28H150 2012, TL28H150, TL28H150, TB 28-H-150, P28H150-2012, TL28H150, 113667, TL28H150

Comparable to: TL28H150, TB28H150, 28 H 150 TL, TL28H150 2012, 20182540, TL28H150-2012 DYNA-SYNC SPKT, TL28H150 2012, TL28H150, TL28H150, TB 28-H-150, P28H150-2012, TL28H150, 113667, TL28H150
