TL28L050 Imperial Pitch Pulleys

TL28L050, 78817016, TL28L050 1210, 20182543, 113468, P28L050-1210

Product Details for TL28L050

Comparable to: TL28L050, 78817016, TL28L050 1210, 20182543, 113468, P28L050-1210

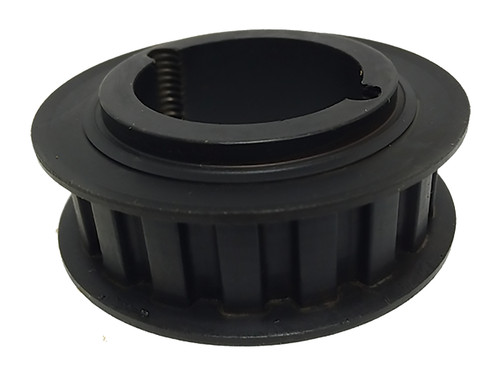

TL28L050, Timing Pulley, Powerhouse Timing, 1210 Bushing, Cast Iron

Specifications

Product Number TL28L050
Teeth 28
Tooth Style L
For Belt Width (in) 0.500
Type 8F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.312
Flange Diameter (in) 3.566
Face Width (in) 0.750
Overall Length (in) 1.000
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing 1210
Weight (lb) 1.40
List Price (1-9 Qty.) (USD) 32.56
Discount Price (10-24 Qty.) (USD) 30.93
Discount Price (25-49 Qty.) (USD) 27.68
Part Number Cross Reference TL28L050, 78817016, TL28L050 1210, 20182543, 113468, P28L050-1210

Documentation

Download Catalog 2015_BBMAN_CATALOG_35.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL28L050_REACH_cert
RoHS Certification TL28L050_RoHS_cert
