TL30H100 Imperial Pitch Pulleys

TL30H100, 113620, P30H100-2012

Product Details for TL30H100

Comparable to: TL30H100, 113620, P30H100-2012

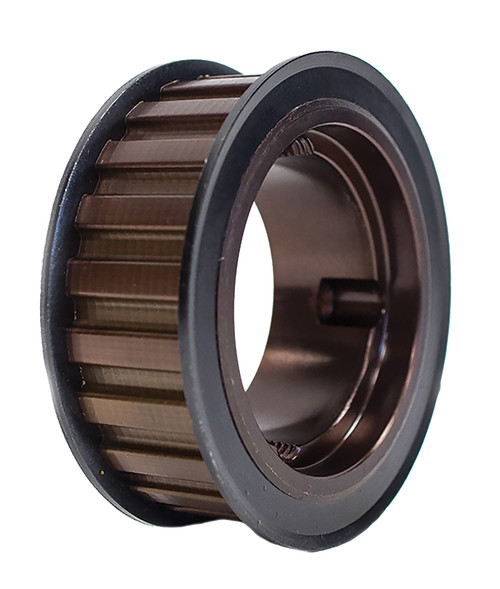

TL30H100, Timing Pulley, Powerhouse Timing, 2012 Bushing, Cast Iron

Specifications

Product Number TL30H100
Teeth 30
Tooth Style H
For Belt Width (in) 1.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.721
Flange Diameter (in) 5.000
Face Width (in) 1.312
Overall Length (in) 1.312
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 2012
Weight (lb) 4.20
List Price (1-9 Qty.) (USD) 70.26
Discount Price (10-24 Qty.) (USD) 64.99
Discount Price (25-49 Qty.) (USD) 58.49
Part Number Cross Reference TL30H100, 113620, P30H100-2012

Documentation

Download Catalog 2015_BBMAN_CATALOG_52.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL30H100_REACH_cert
RoHS Certification TL30H100_RoHS_cert
